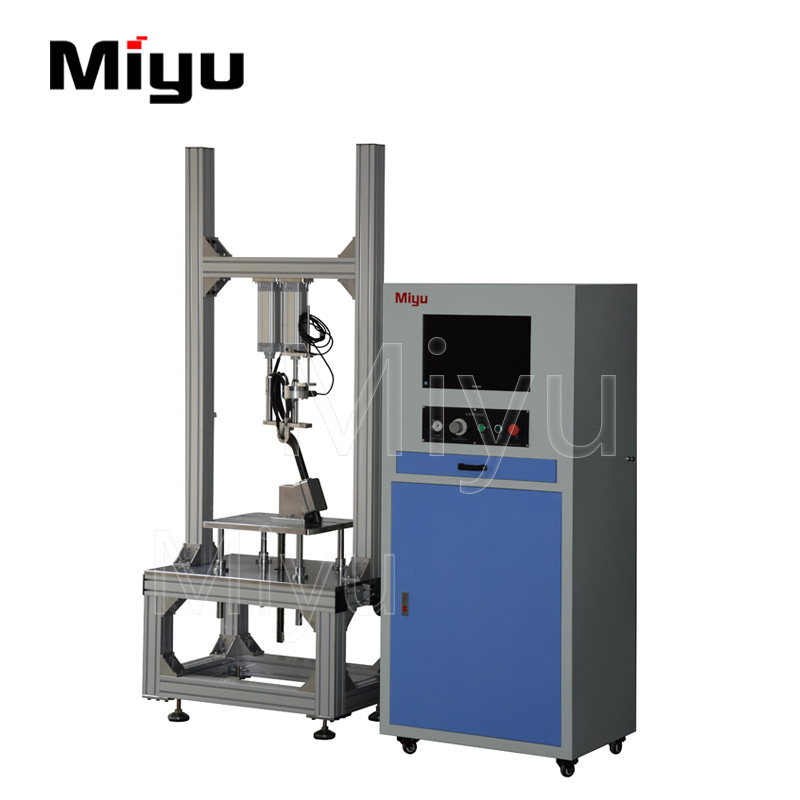

High quality Bicycle Testing machine (Saddle tube fatigue Testing machine ) with computer control

Description

This equipment is suitable for simulating the dynamic fatigue test of bicycle seat cushion when riding. Reference standard: GB 3565-2005 "Bicycle Safety Requirements" 30.3 Saddle Tube Fatigue Test.

Technical Specification

1. Test load: 80KG
2. Test product specifications: 20 inches to 28 inches
3. Test amplitude: 16mm
4. Test frequency: 1-5Hz
5. Number of trials: 1-999999 times
6. Control mode: computer control
7. Implementation standards: ISO 4210 GB 3565-2005
8. External Dimension: 2130x650x1510mm
9. Power supply: 110V/220V, 50/60HZ
10. Power: 750W

Certificates

Partner

Shipment

By sea, by air, by truck,  by courier, by train....

FAQ

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3.  Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
